Feature Matching with FLANN

Goal

In this tutorial you will learn how to:

• Use the FlannBasedMatcher interface in order to perform a quick and efficient matching by using the FLANN ( Fast Approximate Nearest Neighbor Search Library )

Theory

Code

This tutorial code’s is shown lines below.

/**
 * @file SURF_FlannMatcher
 * @brief SURF detector + descriptor + FLANN Matcher
 * @author A. Huaman
 */

#include <stdio.h>
#include <iostream>
#include <stdio.h>
#include <iostream>
#include "opencv2/core.hpp"
#include "opencv2/features2d.hpp"
#include "opencv2/imgcodecs.hpp"
#include "opencv2/highgui.hpp"
#include "opencv2/xfeatures2d.hpp"

using namespace std;
using namespace cv;
using namespace cv::xfeatures2d;

void readme();

/**
 * @function main
 * @brief Main function
 */
int main( int argc, char** argv )
{
  if( argc != 3 )
  { readme(); return -1; }

  Mat img_1 = imread( argv[1], IMREAD_GRAYSCALE );
  Mat img_2 = imread( argv[2], IMREAD_GRAYSCALE );

  if( !img_1.data || !img_2.data )
  { std::cout<< " --(!) Error reading images " << std::endl; return -1; }

  //-- Step 1: Detect the keypoints using SURF Detector
  int minHessian = 400;

  SurfFeatureDetector detector( minHessian );

  std::vector<KeyPoint> keypoints_1, keypoints_2;

  detector.detect( img_1, keypoints_1 );
  detector.detect( img_2, keypoints_2 );

  //-- Step 2: Calculate descriptors (feature vectors)
  SurfDescriptorExtractor extractor;

  Mat descriptors_1, descriptors_2;

  extractor.compute( img_1, keypoints_1, descriptors_1 );
  extractor.compute( img_2, keypoints_2, descriptors_2 );

  //-- Step 3: Matching descriptor vectors using FLANN matcher
  FlannBasedMatcher matcher;
  std::vector< DMatch > matches;
  matcher.match( descriptors_1, descriptors_2, matches );

  double max_dist = 0; double min_dist = 100;

  //-- Quick calculation of max and min distances between keypoints
  for( int i = 0; i < descriptors_1.rows; i++ )
  { double dist = matches[i].distance;
    if( dist < min_dist ) min_dist = dist;
    if( dist > max_dist ) max_dist = dist;
  }

  printf("-- Max dist : %f \n", max_dist );
  printf("-- Min dist : %f \n", min_dist );

  //-- Draw only "good" matches (i.e. whose distance is less than 2*min_dist,
  //-- or a small arbitary value ( 0.02 ) in the event that min_dist is very
  //-- small)
  //-- PS.- radiusMatch can also be used here.
  std::vector< DMatch > good_matches;

  for( int i = 0; i < descriptors_1.rows; i++ )
  { if( matches[i].distance <= max(2*min_dist, 0.02) )
    { good_matches.push_back( matches[i]); }
  }

  //-- Draw only "good" matches
  Mat img_matches;
  drawMatches( img_1, keypoints_1, img_2, keypoints_2,
               good_matches, img_matches, Scalar::all(-1), Scalar::all(-1),
               vector<char>(), DrawMatchesFlags::NOT_DRAW_SINGLE_POINTS );

  //-- Show detected matches
  imshow( "Good Matches", img_matches );

  for( int i = 0; i < (int)good_matches.size(); i++ )
  { printf( "-- Good Match [%d] Keypoint 1: %d  -- Keypoint 2: %d  \n", i, good_matches[i].queryIdx, good_matches[i].trainIdx ); }

  waitKey(0);

  return 0;
}

/**
 * @function readme
 */
void readme()
{ std::cout << " Usage: ./SURF_FlannMatcher <img1> <img2>" << std::endl; }

Explanation

Result

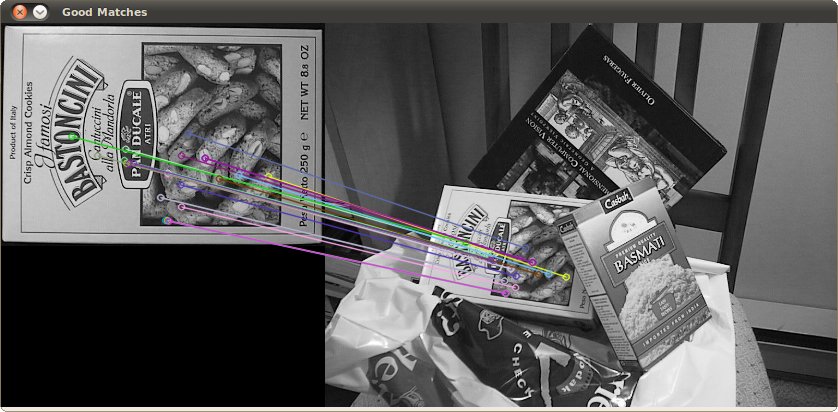

1. Here is the result of the feature detection applied to the first image:

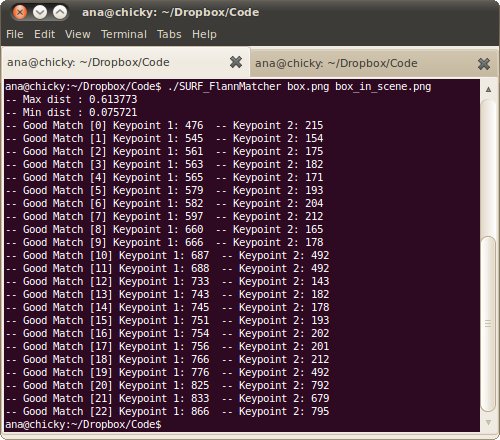

2. Additionally, we get as console output the keypoints filtered:
